Innovation by Nanotechnology
 |
| Place of Origin: | CHINA |
| Brand Name: | NANOLINK |
| Certification: | COA SGS |
| Model Number: | QUV99 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | ROLLS ,PALLET |
| Delivery Time: | WITHIN 3-7DSYS |
| Payment Terms: | T/T |
| Supply Ability: | 30T / DAY |
| Material: | PET | Size: | 1.56M*4000M/ |
|---|---|---|---|
| Product Name: | Skin Care Car Window Film | UV: | 100% |
| Feature: | Uv Protection Film For Windows | ||
| High Light: | uv blocking window film,solar protection film for windows |
||

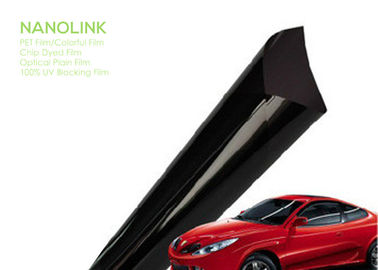

UV400 high heat rejection skin care car window film automobile solar film protection window film
Product details
1. Transmittance of the film and clarity
This is the car used in the film about the most important traffic safety performance.
2. Insulation properties
The rate of window insulation film insulation is an important indicator of performance.
3. Explosion Performance
This is also involved in another important safety performance. Explosion-proof high-quality film itself has a strong toughness, broken glass after the capsule will not be flying Nianlao wounding, and strong performance of its impact.
4. UV-blocking rate
High-quality film, this indicator is generally not less than 98 percent, up to 99 percent higher. UV-blocking high rate can effectively prevent the vehicle were an excessive amount of ultraviolet radiation, burns skin, but also the protection of car stereos will not be drying bad.
5. Colors
According to color and body-loving individuals to matching the colors. Usually shallow green, blue, gray, brown, natural color, and so more comfortable on the eye color.
6. Durability
General regular film manufacturers have a high quality guarantee period, usually 10-15years.
| Item | Unit | Reference Value | Test Value | |
| Average Thickness | μm | 23 | 23±1 | |
| Tensile Strength | MD | Kg/mm2 | 33 | 27±5 |
| TD | Kg/mm2 | 27.5 | 26±5 | |
| Elongation | MD | % | 126 | 140±40 |
| TD | % | 110 | 130±40 | |
| Heat Shrinkage | MD | % | 1.4 | 1.5±1 |
| TD | % | 0.3 | 0±1 | |
| Friction Shrinkage | US | - | 0.25 | 0.4±0.2 |
| UK | - | 0.22 | 0.3±0.2 | |
| Haze | % | 1.5 | ≤2.0 | |
| Definition | % | 99.8 | ≥99 | |
| Wetting Tension | Dyne/cm | 52 | ≥50 | |
| VLT | % | 88 | 88±2 | |
| IRR | % | 11 | 11±2 | |
| UVR | % | 99 | 99±1 | |
Innovation& Quality is our eternal belief!
Nanolink has nanometer metallic oxide preparation, grinding scattering, modified function of masterbatch as core technology, and is based on the research and development of functional materials from optical PET film. Products are widely used photoelectricity, construction, automobile and other fields, innovation and quality is our eternal belief!
Combine·Exceed for Nanolink Materials
In order to maintain the worldwide technological competitiveness and open up a new field for film materials, Nanolink integrates the technology of functional masterbatch dispersion, aggregation, BOPET and online surface coating. Combine now·Exceed future...
Advantage
Nanolink has independent research and development of advanced technology, superior R&D philosophy, well-stocked supply of raw material and senior-level technical support, as well as the strict quality control, can produce film of advanced technology, and serve to markets, in which terminal users increase rapidly around the world.
Laboratory
Laboratory of Nanolink is a space station, which can let people more close to the future, and scientists innovate, who have a common goal. Innovation is everywhere.We make a dream and read a dream...
Now our current products as below :
Inorganic nanoparticles Ceramic Chip Dyed Series
| Model | VLT | IR | Haze | Weather resistance time | UV Blocking |
| IR 7080 | 70% | 80% | 0.5% | 10Years | 48% |
| IR8080 | 80% | 80% | 0.5% | 10Years | 41% |
| IR2080 | 20% | 80% | 0.5% | 10Years | 86% |
| IR7040 | 70% | 40% | 0.5% | 10Years | 99% |
Organic Chip Dyed Series
| Model | VLT | IR | Haze | Weather resistance time | UV Blocking |
| TUV16 | 13% | 40% | 1.5% | 2-3Years | 100% |
| TUV25 | 22% | 40% | 1.5% | 2-3Years | 100% |
| TUV30 | 29% | 40% | 1.5% | 2-3Years | 100% |
| CD15918 | 18% | 13% | 1.5% | 2-3Years | 40% |
